德國IBP HDC75血液透析機質量分析儀除了可以測量血透機的電導率、溫度、壓力、pH值和流速這5個計量規程要求的測試值。

德國IBP HDC75血液透析機質量分析儀應用范圍：

德國IBP HDC75血液透析機質量分析儀Win10操作系統的專用手持機，除了可以測量血透機的電導率、溫度、壓力、pH值和流速這5個計量規程要求的測試值以外，HDC75還擁有強大的軟件功能，可以實時觀察各個數值的波形變化曲線，還可以保存和管理多個血透機的檢測結果,數據無需再傳到電腦。

德國IBP HDC75血液透析機質量分析儀商品詳情：

HDC75血液透析機質量分析儀,德國IBP HDC75血液透析機質量分析儀標準配置

HDC75主機 1個,電導度探測器1個、溫度多功能探頭 1個,壓力傳感器1個,流量傳感器1個,pH探頭1個,連接線1套,電導率校準液 1瓶,充電器1個,便攜箱 1個

Application includes
Pressure
	Hemodialysis machines
	Ophtamological lasers
	Blood pressure meters
	Automatic tourniquets
	Drainage devices
	IV pumps
	Diagnostic, surgical suction
	Ventilators
	Pressure gauges
	RO-Water Systems
Temperature
	Hemodialysis machines
	Temperature monitors
	Electronic thermometers
	Humidifiers/nebulizers
	Blood warmers
	Hypo/hyperthermia machines
	Infant incubator
	Radiant warmers
Conductivity
	Hemodialysis machines
	RO-Systems
	Water Treatment
Flow
	Hemodialysis machines
	RO-Water Systems
	Water Treatment

New Concept

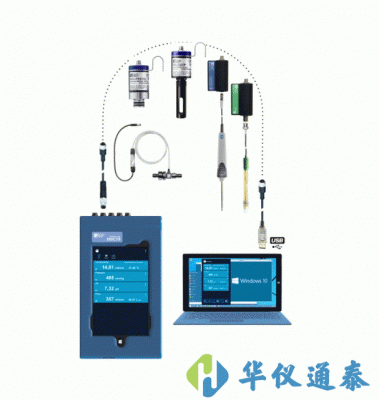

The Biomed-Lab system is a new approach to combine a family of intelligent reference sensors, sources and vital signs simulators with a handheld smart computer for testing and quality control of medical instrumentation. The product line combines more than 30 years of experience of innovative measuring device development.

Customisable

The modular concept of the Biomed-Lab system allows the use of any combination of sensors in order to fulfill user specific test or calibration requirements. Only one central unit for all the daily tasks needed.

HDC75  Display and Control Unit
		7" Touch Screen
		5 Sensor ports
		Windows 10 based
		AC and battery operation
		14000 mAh battery for long continuous work
		Robust housing

Advanced Hard- and Software

Advanced electronics technology combined with highly developed software results in a completely new type of measuring system with features and a high level of accuracy simply not achievable with other units.

The central unit is based on Microsoft Windows 10. This allows to use all the features of a modern smart computer. Data handling was never so easy.

For different applications different software is available. The basic Biometer-Software allows to read measuring values both in numerical and grafical way.

Quality

The HDU-Sensors are developed and produced under certified quality management system according to 13485. We offer an annual sensor calibration service with certification in accordance with the ISO 17025 standard.

德國IBP HDC75血液透析機質量分析儀技術參數：

1. 壓力：

范圍：-650 至+1550mmHg,分辨率：0.01mmHg,精度：滿值的0.05%

2. 電導率

范圍： 0到200.00 mS/cm,

分辨率：

0到199uS/cm 0.3% ±0.6uS/cm,

200 到1999uS/cm ±0.6uS/cm,

2到 11.99mS/cm ±0.06mS/cm,

12到 19.99mS/cm ± 0.03mS/cm,

20到200mS/cm±0.6mS/cm

3. 溫度

范圍：0到100°C,分辨率：0.01°C,精度：±0.05°C(25 - 40°C)

4. pH值

范圍：0到14pH,分辨率：0.01pH,精度： 0.02pH

5. 流速

范圍：100到2000ml/min,分辨率：1ml/min,精度： 1%
